A slide-mounted japygid specimen from the NCSU slide collection: USA: N. Carolina: Wayne Co.: Goldsboro, Center for Env. Farming Systems. 8-VIII-2000 C. M. Greenwood, in soil sample.
Diplura: Japygidae: Metajapyx subterraneus (Packard, 1874)
Our fall semester got under way a couple weeks ago, and ENT 502 is in the throesmidst of learning about early Hexapoda, including Diplura. No, they’re not true insects, and yes, this is the North Carolina Insect of the Week series – but these critters are just to cool to ignore. They’re ubiquitous, conspicuous (if a bit on the small side), and yet relatively rarely collected. Our entire Diplura collection, in fact, could fit inside a breadbox: 44 slides (25 Japygidae, 19 Campodeidae) and 22 vials (19 Japygidae, 3 Campodeidae). And, to top it off, only a single specimen is determined to species: an alcohol-preserved Metajapyx subterraneus collected in Raleigh in 1951. The bulk of the remaining specimens were turned in by students as parts of their ENT 502 insect collections. Let’s keep that tradition going!
Where can one find Metajapyx subterraneus? My research didn’t involve Berlese funneling nor litter extraction until recently, so I rarely saw any diplurans at all. We typically find them now in thick, rich leaf litter or under logs and stones. If you’re on the hunt for this rather large (~1.5 cm) and beautiful species of dipluran that would be a good place to start.
The species was actually described by A. S. Packard in 1874 from specimens collected under stones just inside the mouth of Mammoth Cave (and under stones along the road near Mammoth Cave) in Kentucky. We have a few records from the mountains of NC and some observations on how this species grooms itself (Valentine & Glorioso 1978), but virtually nothing else is known of this species. We do know that other japygid species are predators of small invertebrates, usually subduing them with their heavily sclerotized cerci (see image below), before ripping into their prey with monocondylous mandibles (other image below). Diplurans also regulate their water balance via eversible vesicles and have interesting ways of dealing with heavy metal pollutants.

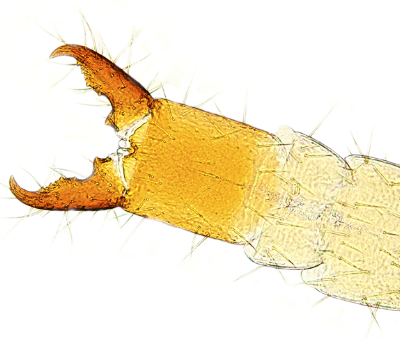

Sclerotized cerci used for capturing and subduing prey, while the japygid lies in wait in the leaf litter or soil.

Monocondylous mandibles for consuming prey, which is probably (mostly) composed of other arthropods.
The oldest specimen we have dates to 1950 and was collected on a dairy farm in Raleigh. In fact, almost all of our specimens come from Wake County, North Carolina, with one each from Franklin Co., Seagrove, Rainbow Springs, Ashe Co., Buncombe Co., and two localities each in Georgia and Tennessee.
Find out more:
Sadly there are no North American Diplura species records available (yet) in GBIF: http://data.gbif.org/species/13142080
Packard, A. S. 1874. Occurance of Japyx in the United States. American Naturalist 8(8): 501-502. [the orginal description]
Smith, L. M. & C. L. Bolton. 1964. Japygidae of North America 9. The Genus Metajapyx. Journal of the Kansas Entomological Society 37 (2): 126-138.
